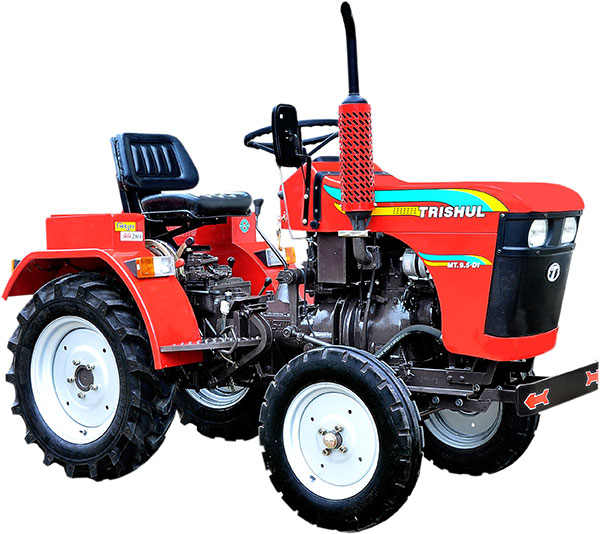

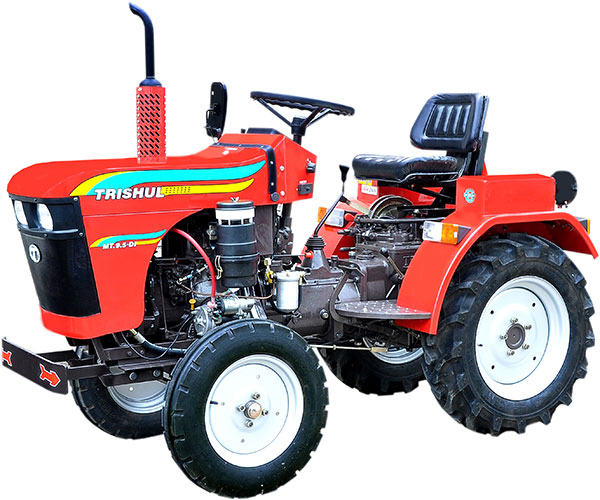

Tractor 12 HP - Technical Specifications


ENGINE
Engine Type Field Marshal
Type Four Stroke, Direct Injection
Horsepower 12 HP
Engine RPM 2600 RPM
Bore/Stroke 85 / 110 mm
Cylinders One
Capacity 625 cc
Cooling System Air Cool
Air Cleaner Oil Bath
Diesel Comsumption 900 ml/Hour (Approx)
Diesel Tank 5 litre
Engine Oil 1.6 litre
Main Gearbox Difference 11 litre

DIMENSIONS
Weight 650 kg
Length 1915 mm
Width 1940 mm
Height 1671 mm
Ground Clearance 240 mm
Wheel Base 860 mm
Track Width 710 mm (Driving Wheel)
725 mm (Steering Wheel)

TRANSMISSION
Clutch Dry, Friction Plate
Gear Box 3 Forward, 1 Reverse / Lo. Gear
Steering Mechanical worm and peg type
Minimum Turning Radius With brake: 2.4 m
Without brake: 2.6 m

TYRES
Front 4.50 x 10
Rear 6.00 x 16
